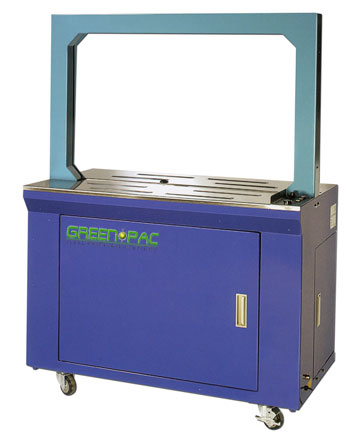

Fully Automatic Strapping Machine


Special Features

  • Programmable Logic Controller Based Operation
  • Strap Tension upto 100kg F
  • Power Surge Protection
  • EMTD Technology for accurate and consistent strapping
  • Electronic Synthesizer for Fusion Ensurance
  • Rustproof easy to flow Aluminium cating components
  • Feathertouch operation to match required tension
  • Modular Control Systems
  • Technical variants for different applications
  • Feasibility for interphasing with data processing systems
  • Die Cast Heater Blade for Endurance

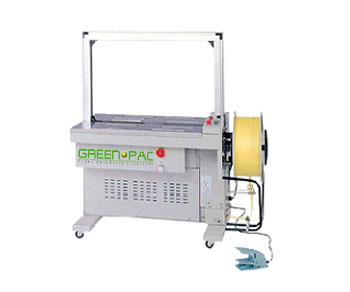

1. The unit performs fully automatic strapping sequences, excellent for high production     demands.
2. A foot switch is provided for convenient operation.



Specification:

Model

GP-104

Dimension

1400mm W x 590mm D x 1500mm H

Arch Size

850mm W x 600mm H – standard, can be specified

Strap Coil Size

Standard: Ø200mm, Optional: Ø230mm or Ø280mm

Table Height

810mm

Net Weight

180KGs

Strapping Speed

2.0 sec / strap

Maximum Tension

80KGs

Available Strap Width

9mm, 12mm or 15mm – specified

Joint of Strap

Heat Sealing

Power Supply

Single or Three Phase, 110V/220V/240V/380V,

50Hz/60Hz

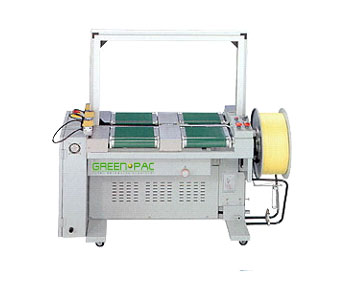

1.       Similar to GP-10, except with powered conveyor belt feed.
2.       Especially suited for strapping small packages.
3.       Photoelectric cell controls strapping and feeding motions.



Specification:



Model

GP-105

Dimension

1600mm W x 590mm D x 1500mm H

Arch Size

850mm W x 600mm H – standard, can be specified

Strap Coil Size

Standard: Ø200mm, Optional: Ø230mm or Ø280mm

Table Height

810mm

Net Weight

230KGs

Strapping Speed

2.0 sec / strap

Maximum Tension

80KGs

Available Strap Width

9mm, 12mm or 15mm – specified

Joint of Strap

Heat Sealing

Power Supply

Three Phase, 220V/240V/380V, 50Hz/60Hz
