Special Features
- Compact Design
- Interchangeable Top & Bottom Cartridge
- Maintenance Free & Sturdy
- Operator Safety & Power Efficient
- Adaptable & Versatile in application
- 2" or 3" Top & Bottom tape head
- Tape tension easily adjustable
- Roller working table
- Manual top Squeezers and blade guards
- Crank Handle adjustments
- Leag height adjustments 8"
- Infeed / Outfeed tables
- Top & Bottom / Slide / Top & Side drive belts options

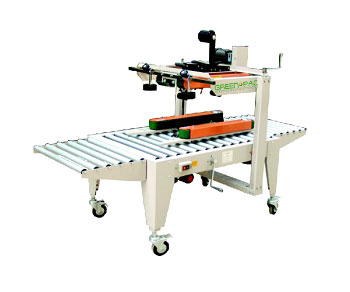

CARTON SEALING |
GP-201-SD |
Specification |
Options |
Carton size: (L) 150 ~ (W) 100-500 (H) 100-500mm |
infeed and outfeed conveyors. |
Table height:580-880mm |
Any size is available |
Working speed: 700-120mm (Cnts/hr) |
|
Tape width: 2" or 3" |
|
Power: 220V 50hz 1phase |
|

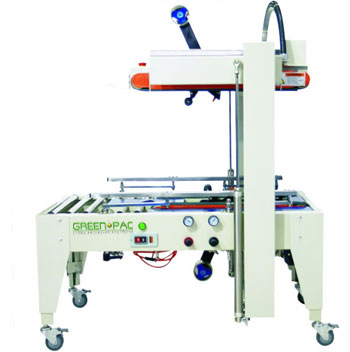

Specification |
Features |
Carton size: (L) 200-600 (W) 150-500 (H) 150-500mm |
* Full automatically adjustmet for the width and height according to carton size |
Table height:650-800mm |
* Combine with production line to make a faster packing |
Working speed: 750 (Cnts/hr) |
*Automatic flaps closing and top&bottom sealing |
Tape width: 48mm, 60mm , 75mm (Alternative) |
|
Power: 220V 50hz 1phase |
Options |
Air pressure: 5kg/cm2 |
Any size is available |
Machine size: 1700 x 910 x 1570mm |
|
Machine weight: 250kg |
|
