Special Features
- Non contact E- Technology reduce maintenance Cost
- Flexible for soft & rigid / small & big packages
- Power saving mode incorporated for low operation cost
- Molecular thermal Fusion ensured 100% sealing
- CE approved electrical / Electronic components improved reliablity
- Strap path regulater for smooth operation
- Proven performance all over the world
- Uninterrupted consumable support

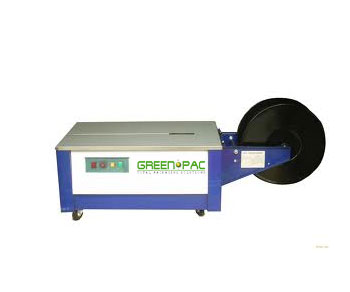

Model |
GP-101 |
Dimensions (mm) |
902 x 587 x 767 |
Strapping Speed |
1.4 sec/strap |
Strap Width (mm) |
6 – 15.5 |
Power Consumption (V/Hz) |
220/50, ¼ HP, 1 phase |
Weight (kg) |
110 |
Maximum Tension (kgs) |
55 |

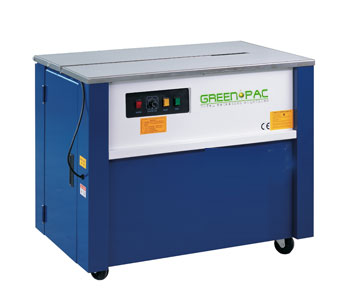

Character:
1. Automatic motor power switches off function.
2. Low table height 460mm.
3. Especially suitable for strapping heavy or bulky products.
Model |
GP-101-L |
Dimension |
1510mm W x 565mm D x 655mm H |
Strap Coil Size |
Standard: Ø200mm, Optional: Ø230mm or Ø280mm |
Table Height |
Fixed |
Net Weight |
80KGs |
Driving Motor |
Single Phase, 1/4HP |
Strapping Capacity |
60mm ~ unlimited |
Strapping Speed |
1.5 sec / strap |
Maximum Tension |
60KGs |
Available Strap Width |
9mm, 12mm and 15mm |
Joint of Strap |
Heat Sealing |
Power Supply |
Single Phase, 110V/60Hz or 220V/50Hz or 22V/60Hz or 240V/50Hz |
Power Consumption |
0.65Kva |

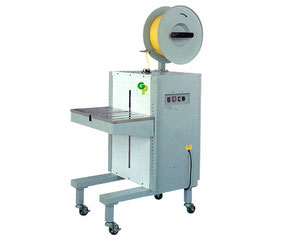

Character:
1. Excellent for strapping sea food products.
2. Vertical type construction.
3. Stainless steel construction.
4. Adjustable table height from 420mm to 900mm.
Model |
GP-101-VEX |
Dimension |
880mm W x 675mm D x 1650mm H |
Strap Coil Size |
Standard: Ø200mm, Optional: Ø230mm or Ø280mm |
Table Height |
Adjustable from 420mm to 900mm |
Net Weight |
130KGs |
Driving Motor |
Single Phase, 1/4HP |
Strapping Capacity |
60mm ~ unlimited |
Strapping Speed |
1.5 sec / strap |
Maximum Tension |
60KGs |
Available Strap Width |
9mm, 12mm and 15mm |
Joint of Strap |
Heat Sealing |
Power Supply |
Single Phase, 110V/60Hz or 220V/50Hz or 22V/60Hz or 240V/50Hz |
Power Consumption |
0.65Kva |
